Characteristics, parameters and replacement instructions of 40”5um high flow filter element

1.Characteristics of high flow filter element

(1)Multi-layer (6 ~ 8 layers) graded pore structure, the pore diameter decreases gradually along the direction of fluid motion, and intercepts the particles of different particle sizes in layers, which has excellent ability of receiving pollution and low flow resistance.

(2)When filtering water, the flow rate of a filter core can reach 90 ~ 110 m3/h.

(3) To provide a 40 inch length filter core, the sealing effect is good and the leakage of the filter core is not easy to occur.

(4)Integrated structure filter element, will not cause overpressure deformation or leakage of the filter element.

(5)The flow direction from inside to outside ensures that all impurities are trapped inside the filter.

2、Technical specification/component material

(1)Filter material: the filter material is made of polypropylene filter medium approved by FDA, which is environmentally friendly. Folded deep-layer multi-layer (6 ~ 8 layers) gradual-change pore diameter polypropylene fiber membrane and wire mesh inside and outside support Layer

(2)Support: Integral polypropylene support framework structure, one-time forming, strong pressure resistance, avoid the shortcomings of multi-pitch hot-melt structure ultra-pressure changeability, more compression resistance and stability

(3)End cover: Glass Fiber reinforced polypropylene

(4)O ring sealing material: EPDN, NBR

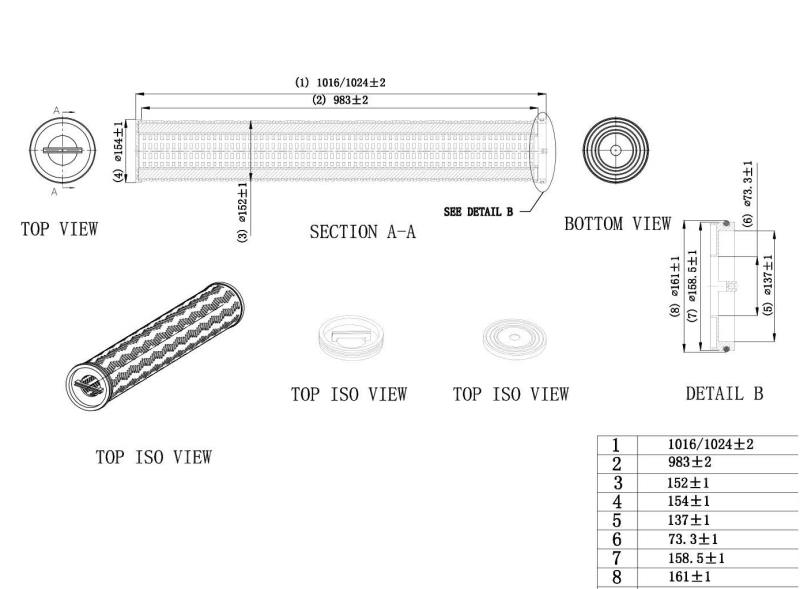

3. Filter element size and drawing outer

Diameter: 6inch (152.4 mm)

Length: 40inch (1016 mm)

4.Parameter index

(1)Maximum operating temperature: Folding polypropylene: 82 °C (180 ° F)

(2)Maximum pressure drop: folding polypropylene: 5.0 Bar, 82 °C

(3)Filter element replacement recommended pressure drop: 2.5 Bar

(4)Recommended maximum filtration flow rate: 40 Inch 360 GPM/1330 LPM

5.APPLICATIONS

(1)RO security filtration, desalination pretreatment .

(2)Power plant condensate filtration.

(3)Biopharmaceutical raw materials, solvents, water filtration.

(4)Bottled water, sugar solution, edible oil, fruit juice, soft drinks, milk filtration (5)Paint, coatings, petrochemical.

(6)Microelectronics, film, Fiber, Resin

6.Product characteristics

(1)Tapered pore structure, horizontal folding technology.

(2)When filtering water, the differential pressure 36psid (2.5 bard) or a significant decline in flow, indicating that filter plug to be replaced.

(3)Filter system needs to be replaced . At higher temperatures (maximum temperature 120OC) , the filtration flow rate and efficiency will increase by more than 5% , whereas at lower temperatures, the filtration flow rate and efficiency will decrease by 10-30% .

(4)The Difference Between Winter and summer replacement: In winter due to low temperature, trace suspended matter, precipitation, etc. , the operating cycle of the filter is 0.5 ~ 1 times shorter than that of the same water quality in summer.
