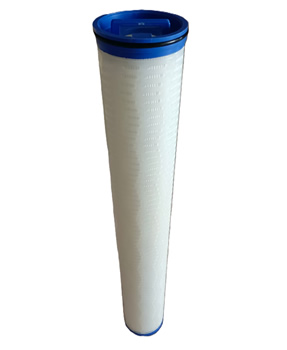

● Large Diameter for Liquid Filter

● Polypropylene / Glass Fibre/PET/PEACH

POLVER provides high capacity filtration for virtually any liquid application by utilizing large 6"(152mm) diameter cartridges in 40"(1016mm) and 60"(1524mm) lengths with a variety of material choices for compatibility and performance needs .

The inside - to - outside flow through the cartridge makes sure contaminant is captured within the cartridge allowing a cleaner cartridge extraction during change - outs .

Significantly fewer cartridges to change out than traditional 2.5" OD &3" OD cartidges .

High strength outer support attached to OD of cartridge ensures media will not balloon or become embedded in basket support .

Also ensures easy removal of cartridge upon extraction during change - out .

Patent Pending POLVER technology on cartridge provides absolute sealing of cartridge to basket support and also to cartridge support plate of competitor housings , even when they are out - of - round .

The globally unique patented design of the pressure relief valve on the end cover effectively solves the problem of the rubber ring being difficult to remove from vacuum after the filter element is.

Features and Benefits

• High flow rate capacity proprietary seal technology for positive , absolute no bypass sealing
• The pressure relief valve effectively solves the problem of filter element extraction.
• W - pleated multi - layered media
• W - pleat provides maximized filtration media usage and keeps pleats from folding.
• Rigid outer support cage allows cartridge to be removed easily from interrnal basket in housing
• Inside - to - outside flow through the cartridge makes sure contaminant is captured within the cartridge allowing a cleaner cartridge extraction during change - outs .

Applications

• Cartridge for liquid service used to capture solid contaminant from fluid stream
• Used in liquid style housings such
• Process Water
• Photochemistry
• Power Generation
• Speciality Chemicals
• Water Treatment
• Food and beverage

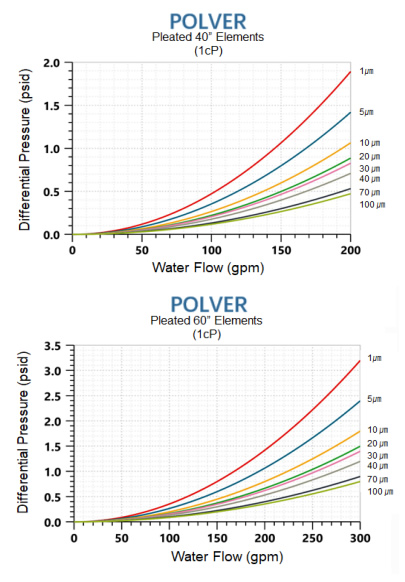

Performance Characteristics

POLVER / High Flow Filter Car

Specifications

Material of Construction

Filtration Media :

• Polypropylene
• Glass fibre
• Polyester
• Cellulose

Support/Cage :

• Polypropylene
• Tin Plated Steel
• Stainless steel

End Cap :

• Polypropylene
• Nylon

Gasket :

• Buna - N
• EPDM
• NBR
• FPM

Maximum Operating Temperature

L :85°C (185℉)

E :116°C (246.2℉)

C1,C2,G1,G2:121°C (250℉)

GHT1,GHT2:177°C (350℉)

Maximum Differential Pressure

4.2bar(60.92psi)

Recommended Change Out Differential

Pressure

2.4bar(35psi)

Flow Direction

Inside to Outside Flow

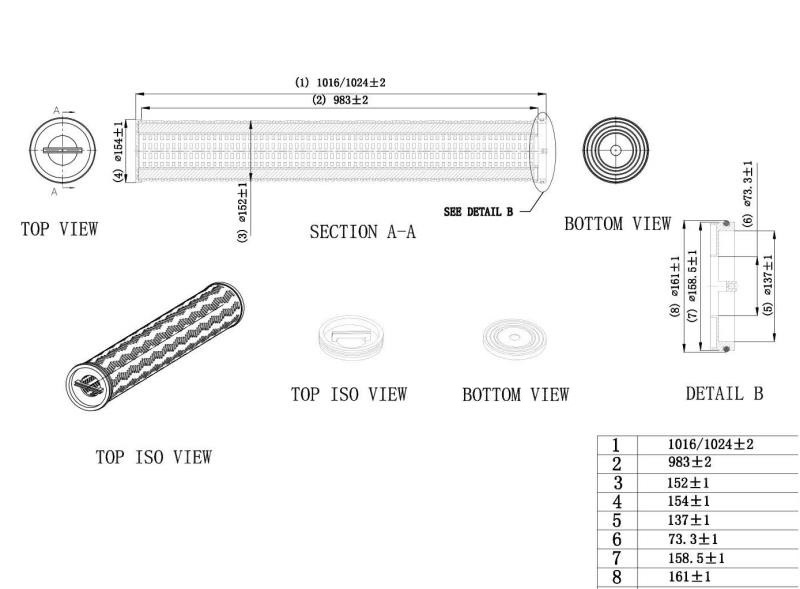

Dimensions ( Nominal )

Outside Diameter :152mm(6")

Inside Diameter :74mm(2.9")

Length :1016mm/40"

Length :1524mm/60"

Pleat Style

Standard : W - Pleat

Filtering precision

0.45~100 micrometer
